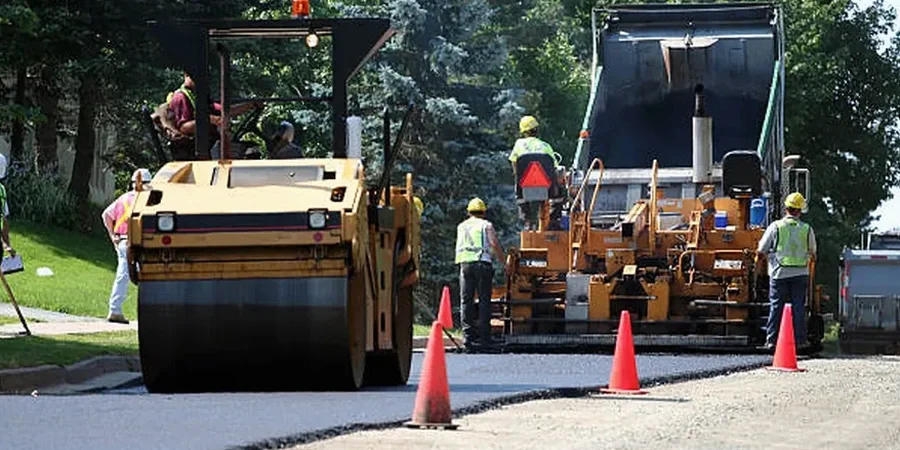

Sudbury sits at 347 meters above sea level, surrounded by the eroded remnants of a 1.85-billion-year-old meteor impact basin. That ancient crater floor left us with glacially compacted silts, scattered boulder clays, and pockets of sensitive fine-grained till. When we design a flexible pavement here, we are not just stacking asphalt layers; we are engineering a cross-section that must survive 130 freeze-thaw cycles a year while supporting loads from ore haulers and logging trucks. A pavement built without accounting for Sudbury's extreme frost penetration depth, typically exceeding 2.1 meters in exposed cuts, will rut and crack within two seasons. We start every flexible pavement design by quantifying the subgrade's resilient modulus under saturated, frozen, and thawed states, because the transition from winter to spring is where most structural failures initiate.
A flexible pavement in Sudbury is a thermodynamic system as much as a structural one—the frost front dictates the effective thickness more than the ESAL count does.
Our approach and scope
Site-specific factors
The most common mistake we see on Sudbury contracts is substituting standard OPSS Granular B for a free-draining open-graded layer beneath the asphalt. In a climate where the water table rises sharply during the April melt, trapped moisture in a dense-graded base saturates rapidly, reducing the effective structural number by up to 30% during the critical thaw-weakening period. A pavement designed for 10 million ESALs on paper suddenly behaves like one rated for three. The second error is ignoring the thermal gradient across the asphalt layer: using a single PG grade without modeling the low-temperature cracking potential at -35°C ambient leads to transverse cracks that propagate from the surface down, opening pathways for salt and water to attack the granular layers. Both failures are entirely preventable with a site-specific climate file and a properly instrumented CBR road subgrade evaluation before the cross-section is finalized.
Reference standards
CSA A23.3: Design of Concrete Structures (pavement load transfer), OPSS 310: Construction Specification for Hot Mix Asphalt, AASHTO T307: Resilient Modulus of Subgrade Soils, AASHTOWare Pavement ME Design (MEPDG), NBCC 2020: Climatic Data for Frost Depth
Complementary services
Pavement Structural Design
Layer thickness optimization using AASHTO 93 and MEPDG methods. We build the traffic spectrum from actual weigh-in-motion data where available, not generic axle load assumptions.
Subgrade Stabilization & FDR
Full-depth reclamation with cement or foamed asphalt for failed flexible pavements. We design the mix for Sudbury's RAP variability and verify stiffness gain through in-situ plate load testing.
Construction QA & Forensic Investigation
Nuclear density testing, asphalt coring, and falling weight deflectometer (FWD) backcalculation to confirm the in-place structural number meets the design intent before project acceptance.
Typical parameters
Frequently asked questions
What is the typical design life for a flexible pavement in Sudbury's climate?
We target a 20-year structural design life for arterial roads and 15 years for residential collectors, per the Ontario MTO Pavement Design and Rehabilitation Manual. The actual life depends heavily on the frost protection layer: if the combined asphalt and granular thickness exceeds 60% of the design frost depth, the pavement typically meets or exceeds its design ESALs. We run a mechanistic-empirical check that models cumulative fatigue damage year by year using Sudbury's actual 30-year temperature and precipitation records.
How does the frost depth affect flexible pavement design in Sudbury?
Sudbury's design frost penetration reaches 2.1 to 2.5 meters, which is deeper than most southern Ontario locations. If the subgrade is frost-susceptible—and most of our glacial tills are—ice lenses will form during the winter and thaw in spring, creating a period of drastically reduced bearing capacity. We handle this by two strategies: either removing frost-susceptible soil to the full frost depth and replacing it with non-frost-susceptible granular, or providing a sufficient thickness of granular and asphalt so that the freezing plane does not penetrate the subgrade. The second option is more common on high-volume routes.
What is the cost range for a flexible pavement design study in Sudbury?
A full flexible pavement design package, including subgrade investigation (boreholes, DCP, CBR testing), traffic analysis, MEPDG modeling, and final cross-section with specifications, typically ranges from CA$2,580 to CA$6,840. The spread depends on the project length, number of soil units encountered, and whether we need to run FWD testing on an existing pavement for a rehabilitation design.
Do you design flexible pavements for mine haul roads in the Sudbury Basin?
Yes. Mine haul roads present a different loading regime than public highways: slow-moving, high-tire-pressure vehicles with channelized traffic patterns. We use the CMHA (Canadian Mine Haul Road) design methodology, which prioritizes rolling resistance and shear failure over fatigue cracking. The subgrade stabilization often involves cement-treated bases or geogrid reinforcement over the stiffer glacial tills found near the Sudbury Igneous Complex.
