Electrical Resistivity Testing (VES) for Subsurface Investigation in Sudbury

The most common mistake we see in Sudbury is assuming bedrock is uniform just because the outcrop looks solid at surface. Glaciofluvial deposits here can mask deep troughs, and the contact between overburden and the underlying Shield granite is rarely a flat plane. When a contractor sinks an excavation based only on a few boreholes, they miss the lateral gaps. Vertical Electrical Sounding fills those gaps. By injecting current into the ground and measuring the potential drop across a expanding array, we construct a continuous resistivity profile that reveals where clay pockets, saturated silts, or fractured rock zones actually sit. For projects near the Sudbury Basin rim, where sulfide mineralization alters groundwater conductivity, this method helps us separate natural anomalies from real geotechnical hazards before a single bucket hits the soil.

Resistivity doesn't just map layers—it discriminates between clean sand, contaminated clay, and fractured rock by how each conducts current.

Our approach and scope

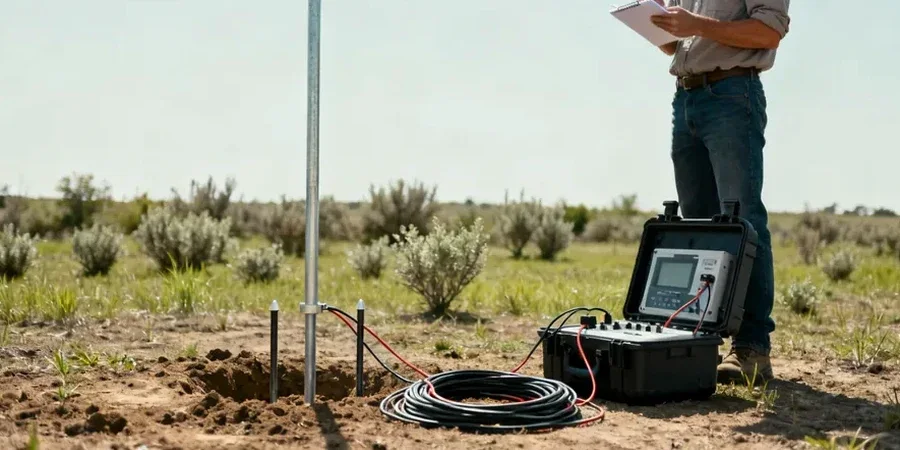

The field setup we use across Sudbury relies on a 12-channel resistivity meter with a 400-watt transmitter, paired with stainless steel electrodes spaced along a Schlumberger array. The operator drives four electrodes in a straight line over the survey target—often a future building pad or a utility corridor through glaciolacustrine clay. As the current electrodes spread outward, the increasing penetration depth reveals a layered resistivity model. In winter months, we switch to a high-voltage booster to punch through frozen ground, which is common from November through March in this part of Northern Ontario. Data processing runs through a 2D inversion software that iterates on a finite-element mesh, constrained by any available borehole logs. For deeper targets beyond 30 meters, we often combine the VES profile with a seismic refraction line to cross-check bedrock velocity against resistivity contrasts, especially in areas where conductive sulfides could mimic a water table.

Electrical Resistivity Testing (VES) for Subsurface Investigation in Sudbury

Site-specific factors

The contrast between the Flour Mill area and the newer subdivisions south of Long Lake Road tells a clear story. In the Flour Mill, historical fill mixed with tailings from early smelting creates a conductive layer that can mask underlying bedrock depressions. Down south, clean sand and gravel outwash from the Vermilion River delta behaves as a resistive medium, making clay lenses stand out sharply. If a project in the western basin relies only on borehole spacing typical of southern Ontario, it misses these abrupt transitions. We've seen cases where a strip footing designed for 150 kPa bearing on sand encountered a 2-meter-thick clay seam at 4 meters depth—undetected until the footing tilted. A VES survey across the same pad would have flagged that low-resistivity anomaly in a single afternoon. When your site sits on the complex stratigraphy left by the retreat of the Superior lobe, skipping a resistivity profile means betting the foundation on a guess.

Need a geotechnical assessment?

Reply within 24h.

Email: [email protected]

Reference standards

ASTM D6431-18 (Standard Guide for Using the Direct Current Resistivity Method), NBCC 2020 (National Building Code of Canada, geotechnical investigation requirements), CSA A23.3 (Design of Concrete Structures, references to site characterization)

Complementary services

1D Vertical Electrical Sounding (VES)

Single-point Schlumberger sounding to determine layer thickness and resistivity values at a target location. Ideal for preliminary foundation depth assessment.

2D Resistivity Imaging

Multi-electrode Wenner or dipole-dipole line for mapping lateral changes along a transect. Used for pipeline corridors and road cuts in the Sudbury Basin.

Borehole-to-Surface Tomography

Combines downhole electrodes with surface arrays to resolve thin layers in complex overburden sequences, particularly effective in glaciofluvial settings.

Time-Lapse Resistivity Monitoring

Repeated surveys to track groundwater movement or contaminant plume migration over time, referenced against baseline VES data.

Typical parameters

Parameter	Typical value
Array configuration	Schlumberger (standard), Wenner (alternate)
Max investigation depth	Up to 80 m, depending on surface conditions
Current range	1 mA to 2,000 mA, auto-regulated
Electrode material	Stainless steel with saline coupling in dry soils
Data output	Apparent resistivity curve, 2D inverted section, layer model
Sampling rate	10 readings per spacing, stacking for noise reduction
Applicable standard	ASTM D6431-18

Frequently asked questions

How much does a VES survey cost in the Sudbury area?

A typical Vertical Electrical Sounding campaign ranges between CA$900 and CA$1,240, depending on the number of sounding points, maximum depth needed, and terrain accessibility. Projects requiring multiple lines or winter access equipment fall toward the upper end.

How deep can resistivity surveying reach in Northern Ontario soils?

With our 400-watt transmitter and Schlumberger array, we routinely reach 50 to 80 meters in Sudbury's glacial deposits. Frozen ground in winter reduces current injection efficiency, so we use saline coupling and a high-voltage booster to maintain depth penetration during cold months.

Can resistivity tell the difference between bedrock and a boulder bed?

Not always on its own. A dense boulder layer can show resistivity similar to fractured bedrock. That's why we cross-reference VES profiles with seismic refraction or borehole data when the resistivity curve shows an ambiguous high-resistivity layer near the expected bedrock depth. More info.
