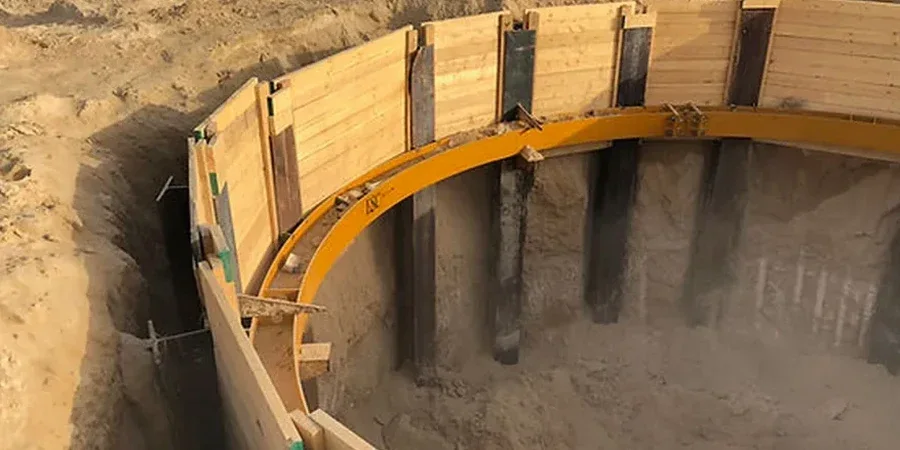

The most expensive mistake a Sudbury developer can make is assuming bedrock is uniform. Too many projects hit a surprise: a buried valley filled with 20 meters of compressible clay, invisible from the surface. Standard shallow footings simply cannot bridge these hidden glacial features. Our pile foundation design process begins where the geotechnical report ends, translating complex subsurface data into a structural system that works with, not against, the Canadian Shield's erratic profile. We don't just pick a pile type; we analyze the interaction between the shaft, the socket, and the unique stress history of the local overburden. For sites near the Creighton or Copper Cliff areas, this often means integrating results from a CPT test to map the continuous stratigraphy and identify weak lenses that could induce negative skin friction on the pile group.
A properly designed pile socket in Sudbury's norite requires a rock mass rating (RMR) assessment, not just an unconfined compressive strength value.
Our approach and scope
Site-specific factors
Sudbury sits at an elevation of roughly 347 meters within the Sudbury Basin, a 1.85-billion-year-old meteorite impact structure. This isn't just geological trivia; it dictates the risk profile for deep foundations. The basin rim exposes fractured footwall breccia, while the interior holds deep, glaciolacustrine clay deposits. A pile group designed solely for vertical capacity can fail laterally if the soft clay layer liquefies or undergoes cyclic softening during a moderate earthquake. The 2013 Seismic Hazard Map of Canada places Sudbury in a moderate seismicity zone, but site amplification in deep soil pockets can increase the surface acceleration significantly. Ignoring the downdrag loads from consolidating clay or mine tailings is another frequent oversight. Our design explicitly models the neutral plane location and downdrag forces to ensure the structural capacity of the pile shaft is never exceeded, a critical check that generic design software often misses for sites near historic smelting operations.
Reference standards
National Building Code of Canada (NBCC) 2020, CSA A23.3:19 - Design of Concrete Structures, Canadian Foundation Engineering Manual (CFEM) 4th Edition, ASTM D1143 / D1143M - Standard Test Methods for Deep Foundation Elements Under Static Axial Compressive Load, ASTM D3689 / D3689M - Standard Test Methods for Deep Foundation Elements Under Static Axial Tensile Load
Complementary services
Axial and Lateral Pile Analysis
Detailed single pile and group analysis using t-z and p-y methods. We model the specific stress-strain behavior of the glacial stratigraphy encountered in your borehole logs, including the effects of pre-consolidation pressure from the Laurentide Ice Sheet.
Pile Integrity and Dynamic Testing Specifications
Development of testing specifications for high-strain dynamic testing (PDA) and cross-hole sonic logging (CSL) for drilled shafts. We correlate the required energy and wave equation analysis to the specific pile dimensions and site soil damping characteristics.
Typical parameters
Frequently asked questions
What is the typical embedment depth for piles in the Sudbury Basin?
There is no single typical depth. In areas of shallow bedrock, such as near Ramsey Lake, piles may socket only 3 to 5 meters into the rock. In buried bedrock valleys, piles can extend 25 to 35 meters through soft sediments before reaching competent bearing strata. The design depth is determined entirely by the site-specific stratigraphy obtained from a deep borehole investigation.
How do you account for the acidic groundwater near mine sites in the pile design?
Acidic mine drainage (AMD) is a critical durability consideration in Sudbury. We specify increased concrete cover and sulfate-resistant cement (Type HS or HSb per CSA A3001) for the pile shaft. For steel H-piles, we calculate a sacrificial steel thickness based on the pH and sulfate concentrations measured in the site's groundwater samples, ensuring the structural capacity remains intact over the design life of the building.
What are the cost factors for pile foundation design in Sudbury?
Design fees for pile foundation engineering typically range from CA$2,500 to CA$8,600, depending on the complexity of the soil profile and the number of pile configurations analyzed. This scope includes the geotechnical-structural interface calculations, lateral load analysis, and the preparation of construction-ready drawings and technical specifications.
Can helical piles be used instead of driven piles in sensitive glacial clays?
Yes, helical piles are often a viable alternative in Sudbury's sensitive clay deposits, as they generate minimal vibration during installation. The design involves calculating the bearing capacity of individual helix plates using the individual bearing method and verifying the shaft torque correlation factors specific to the local silty clay matrix.
How does frost heave affect pile foundations in Northern Ontario?
Frost heave is a significant design load case in Sudbury, where the frost penetration depth can exceed 2.0 meters. We design the pile shaft to resist uplift forces through anchorage into non-frost-susceptible soil or bedrock. The adfreeze bond between the soil and the pile shaft is calculated based on the frost susceptibility classification of the specific surficial geology unit, following the guidelines in the Canadian Foundation Engineering Manual.
